Lesvos  Electronic

AM RF POWER LINEAR AMPLIFIER RADIO  10W

Input  10 mW
Output  10 W
Frequency:  0,5 - 3 MHZ
Voltage operation 15 V

POWER LINEAR AMPLIFIER AM HF HAM RADIO

Class AB amplifier stage
Input : 50 Ohm
Output : 50 Ohm
Adjust trimmer for RF Power Level on board
Voltage operation 15V/650mA

AM RF POWER LINEAR AMPLIFIER 400 WATT PEP

Frequency:  1 - 2 MHZ
Class AB amplifier stage
Input : 4W PEP/50 Ohm
Output : 400W PEP/50 Ohm
Voltage operation 100V/2A

AM  FILTER  900 - 1800 KHZ

AM RF POWER LINEAR AMPLIFIER RADIO

Frequency:  0,5 - 2 MHZ
Class AB amplifier stage
Input : 50 Ohm
Output : 50 Ohm
Adjust trimmer for RF Power Level on board
Voltage operation 28V
You must use a fan to cool the output transistor

LINEAR   FM   BROADBAND    50W

Είσοδος  0.6 W
Τάση  12-15 V
Ρεύμα  5 A

© 1990-2024 - Lesvos Electronic, Inc. All rights reserved.

AMPLIFIER WITH MODULATOR  520 KHz - 2000 KHZ

Audio input 1 Volt
Input RF 10mw
Output 1W PEP
Supply 15V

Home

Transmitters

Linear

Receivers

Frequency Meter

Semiconductors

Miscellaneous

Contact Us

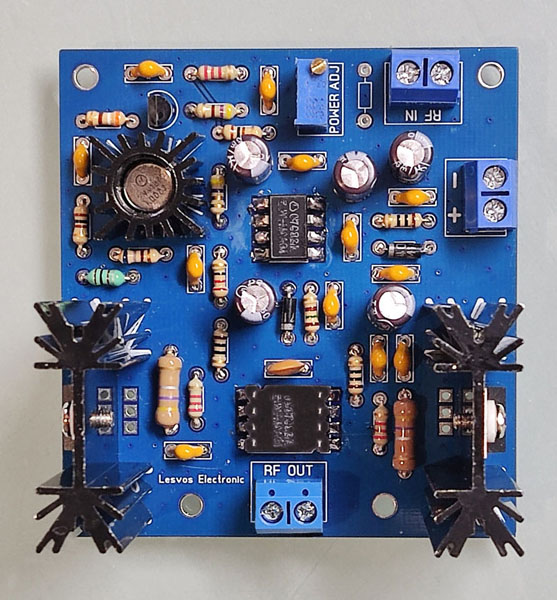

LINEAR AMPLIFIER AM HF HAM   1-30MHz  12W

AM RF POWER LINEAR AMPLIFIER RADIO  10W

POWER LINEAR AMPLIFIER AM HF HAM RADIO

AM RF POWER LINEAR AMPLIFIER RADIO

AM RF POWER LINEAR AMPLIFIER 400 WATT PEP

AM  FILTER  900 - 1800 KHZ

LINEAR   FM  88-108 MHZ  BROADBAND  50W

AMPLIFIER WITH MODULATOR  520 KHz-2000 KHZ

LINEAR AMPLIFIER AM HF HAM   1-30MHz  12W

Input  10mW
Output 12W
Volt  15V
Amper  2A
